R17齒輪減速機馬達詳細信息

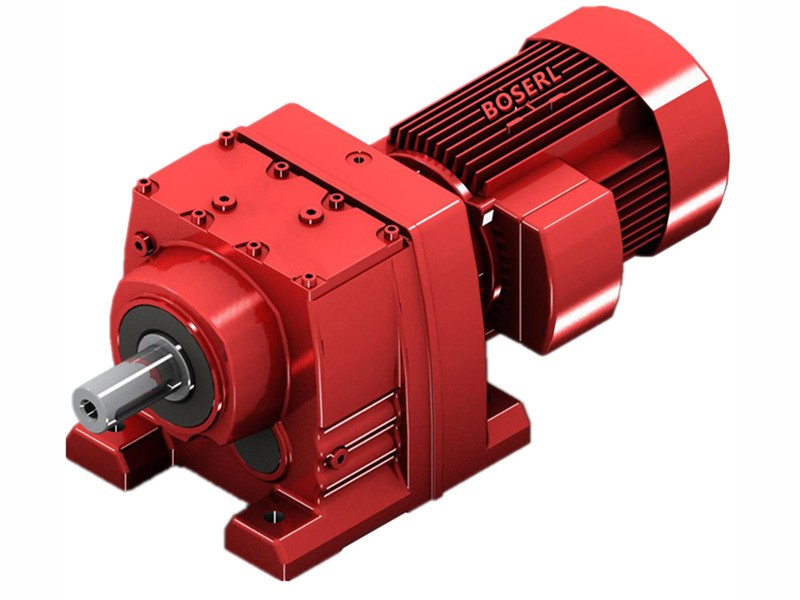

R17齒輪減速機馬達
訂購熱線：13360667204
關鍵詞：R17齒輪減速機馬達_R17Y0.25KW_R17Y0.37KW_R17齒輪減速機_R17齒輪減速機生產廠家_R17齒輪減速機廠家
R17Y0.25KW減速機電機參數：
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| R17Y0.25KW | 57.35 | 0.25KW | 23.0rpm | 105N.m | 14kg | 156N | 0.80 |
| R17Y0.25KW | 53.76 | 0.25KW | 24.0rpm | 99N.m | 14kg | 785N | 0.85 |
| R17Y0.25KW | 47.44 | 0.25KW | 27.0rpm | 87N.m | 14kg | 1630N | 1.00 |
| R17Y0.25KW | 44.18 | 0.25KW | 29.0rpm | 81N.m | 14kg | 2000N | 1.05 |
| R17Y0.25KW | 38.61 | 0.25KW | 34.0rpm | 71N.m | 14kg | 2200N | 1.20 |
| R17Y0.25KW | 36.20 | 0.25KW | 36.0rpm | 66N.m | 14kg | 2180N | 1.30 |
| R17Y0.25KW | 31.94 | 0.25KW | 41.0rpm | 59N.m | 14kg | 2120N | 1.45 |
| R17Y0.25KW | 28.32 | 0.25KW | 46.0rpm | 52N.m | 14kg | 2070N | 1.65 |
| R17Y0.25KW | 24.07 | 0.25KW | 54.0rpm | 44N.m | 14kg | 2000N | 1.90 |
| R17Y0.25KW | 25.23 | 0.25KW | 52.0rpm | 46N.m | 14kg | 2020N | 1.85 |
| R17Y0.25KW | 23.15 | 0.25KW | 56.0rpm | 42N.m | 14kg | 1980N | 2.00 |
| R17Y0.25KW | 19.71 | 0.25KW | 66.0rpm | 36N.m | 14kg | 1910N | 2.40 |
| R17Y0.25KW | 16.99 | 0.25KW | 77.0rpm | 31N.m | 14kg | 1840N | 2.70 |
| R17Y0.25KW | 15.84 | 0.25KW | 82.0rpm | 29N.m | 14kg | 1810N | 2.90 |
| R17Y0.25KW | 13.84 | 0.25KW | 94.0rpm | 25N.m | 14kg | 1740N | 3.40 |
| R17Y0.25KW | 12.98 | 0.25KW | 100rpm | 24N.m | 14kg | 1720N | 3.60 |
| R17Y0.25KW | 11.45 | 0.25KW | 114rpm | 21N.m | 14kg | 1660N | 3.90 |
R17Y0.37KW減速機電機參數：
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| R17Y0.37KW | 38.61 | 0.37KW | 36.0rpm | 99N.m | 14.5kg | 770N | 0.85 |
| R17Y0.37KW | 36.20 | 0.37KW | 38.0rpm | 93N.m | 14.5kg | 1260N | 0.90 |
| R17Y0.37KW | 31.94 | 0.37KW | 43.0rpm | 82N.m | 14.5kg | 1910N | 1.05 |
| R17Y0.37KW | 28.32 | 0.37KW | 49.0rpm | 72N.m | 14.5kg | 1880N | 1.15 |
| R17Y0.37KW | 24.07 | 0.37KW | 57.0rpm | 62N.m | 14.5kg | 1830N | 1.40 |
| R17Y0.37KW | 25.23 | 0.37KW | 55.0rpm | 65N.m | 14.5kg | 1840N | 1.30 |
| R17Y0.37KW | 23.15 | 0.37KW | 60.0rpm | 59N.m | 14.5kg | 1820N | 1.45 |
| R17Y0.37KW | 19.71 | 0.37KW | 70.0rpm | 50N.m | 14.5kg | 1760N | 1.70 |
| R17Y0.37KW | 16.99 | 0.37KW | 81.0rpm | 44N.m | 14.5kg | 1710N | 1.95 |
| R17Y0.37KW | 15.84 | 0.37KW | 87.0rpm | 40N.m | 14.5kg | 1680N | 2.10 |
| R17Y0.37KW | 13.84 | 0.37KW | 100rpm | 35N.m | 14.5kg | 1630N | 2.40 |
| R17Y0.37KW | 12.98 | 0.37KW | 106rpm | 33N.m | 14.5kg | 1610N | 2.60 |
| R17Y0.37KW | 11.45 | 0.37KW | 121rpm | 29N.m | 14.5kg | 1560N | 2.80 |
| R17Y0.37KW | 10.15 | 0.37KW | 136rpm | 26N.m | 14.5kg | 1520N | 3.00 |
| R17Y0.37KW | 8.63 | 0.37KW | 160rpm | 22N.m | 14.5kg | 1460N | 3.30 |
| R17Y0.37KW | 7.55 | 0.37KW | 183rpm | 19N.m | 14.5kg | 1370N | 2.90 |
| R17Y0.37KW | 7.04 | 0.37KW | 196rpm | 18N.m | 14.5kg | 1350N | 3.10 |
| R17Y0.37KW | 6.15 | 0.37KW | 224rpm | 16N.m | 14.5kg | 1300N | 3.40 |
| R17Y0.37KW | 5.76 | 0.37KW | 239rpm | 15N.m | 14.5kg | 1280N | 3.60 |
| R17Y0.37KW | 5.09 | 0.37KW | 271rpm | 13N.m | 14.5kg | 1240N | 3.90 |
| R17Y0.37KW | 4.51 | 0.37KW | 306rpm | 12N.m | 14.5kg | 1200N | 4.20 |
| R17Y0.37KW | 3.83 | 0.37KW | 360rpm | 9.8N.m | 14.5kg | 1140N | 4.60 |
R17齒輪減速機馬達類型：
RX17齒輪減速機馬達單級底腳安裝斜齒輪減速電機
RXF17齒輪減速機馬達單級B5法蘭安裝斜齒輪減速機電機
R17齒輪減速機馬達底腳安裝斜齒輪減速電機
R17F齒輪減速機馬達底腳、B5法蘭安裝斜齒輪減速電機
RF17齒輪減速機馬達B5法蘭安裝斜齒輪減速電機
RZ17齒輪減速機馬達B14法蘭安裝斜齒輪減速電機
R17齒輪減速機馬達安裝尺寸圖紙
R17齒輪減速機馬達生產廠家，看廠請?zhí)崆叭祛A(yù)約R系列減速機
關鍵詞:R系列減速機與電機_臥式減速機_臥式齒輪減速電機一套_臥式齒輪減速機_R系列減速機生產廠家_臥式減速機生產廠家_臥式齒輪減速機生產廠家
R系列減速機型號：R17減速機,R27減速機,R37減速機,R47減速機,R57減速機,R67減速機,R77減速機,R87減速機,R97減速機,R107減速機,R137減速機,R147減速機,R167減速機
R系列減速機可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機 0.12KW-132KW之間
如需工程師幫選型，請加微信13827261050，留言告知工程師參數要求
